SotoTT Table Top Passive Vibration Isolation System
SotoTT Table Top Passive Vibration Isolation System
A lightweight and compact vibration absorption systems allows to significantly reduce unwanted vibrations translated to working environment from various environment disturbances. Developed by engineers, physicists, and leading industry consultants with expertise in vibration isolation and precision instruments, SOTO Effectiveness is in significant absorption of vibrations and disturbances.
Key Features
▸Highly Damped Step Respond
▸Simple installation - No tuning require
▸Application-specific designs/products/
▸Capabilities to meet your needs
▸Ability to support massive machines, tools,
systems
| Device | SOTO MD | SOTO TT20 | SOTO TT75 | SOTO TT75x | SOTO TT100 | SOTO TT150 | SOTO TT180 | SOTO TT200 |
|---|---|---|---|---|---|---|---|---|
| Dimensions (WxDxH) mm | 120x110x75 | 300x450x65 | 300x450x65 | 400x500x80 | 400x500x80 | 400x500x80 | 500x600x80 | 600x800x80 |
| Load Capacity (kg) | 300/500/adjustsable | 7-20 | 15-75 | 15-75 | 40-100 | 70-150 | 80-180 | 90-200 |
| Device | All Types |
|---|---|

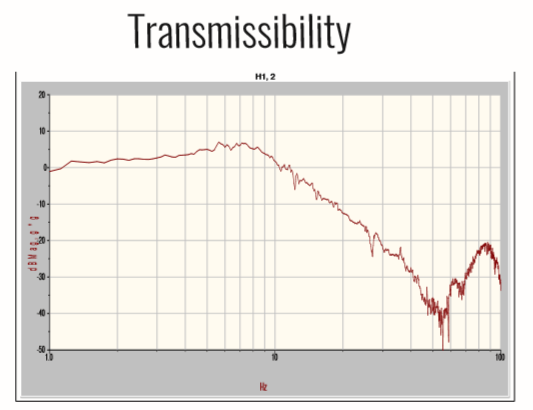

| Performance | -40db reduction between 20Hz -40 Hz (in relationshio with adjustable demper) |
| Settline time | <0.3 sec |
| Damping | Adjustable Damping |
