ArisTT Table Top Active Vibration Isolation System

ArisTT Table Top Active Vibration Isolation System

A lightweight and compact Table Top active vibration isolation systems that counteracts unwanted vibrations for sensitive equipment. The streamlined design allows it to seamlessly become part of the workstation environment, and its straightforward composition requires no follow-up tuning

Key Features

▸6 degrees of freedom
▸Active gain starting from 0.5Hz
▸Variable Damping (patent pending)
▸Build In Artificial Intelligence Feature
▸Adjustable by software active bandwidth
▸Remote control
▸Built in real time diagnostic tools
   ▸Spectrum analyzer
   ▸Oscilloscope
▸Shaker Mode
Device ARISTT 75I ARISTT 75 ARISTT 75X ARISTT 100 ARISTT 150 ARISTT 180 ARISTT 200 ARISTT 20
Dimensions (WxDxH) mm 300x450x65 300x450x85 400x500x80 400x500x80 500x500x8 500x600x80 600x800x80 300x450x85
Load Capacity (kg) 15-75 15-75 15-75 40-100 70-150 80-180 90-200 15-20
Actuator Force ↕ 50N, ↔ 25N ↕ 50N, ↔ 25N ↕ 50N, ↔ 25N ↕ 50N, ↔ 25N ↕ 50N, ↔ 25N ↕ 50N, ↔ 25N ↕ 50N, ↔ 25N ↕ 50N, ↔ 25N
Active Isolation Range 0.5-100Hz 0.5-100Hz 0.5-100Hz 0.5-100Hz 0.5-100Hz 0.5-100Hz 0.5-100Hz 0.5-100Hz
Degrees of Freedom 4 degrees 6 degrees 6 degrees 6 degrees 6 degrees 6 degrees 6 degrees 6 degrees

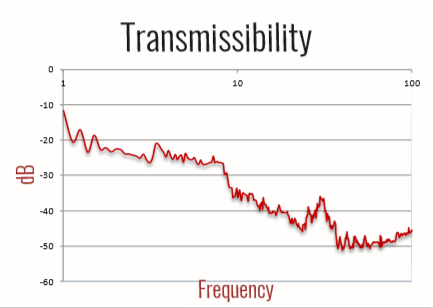

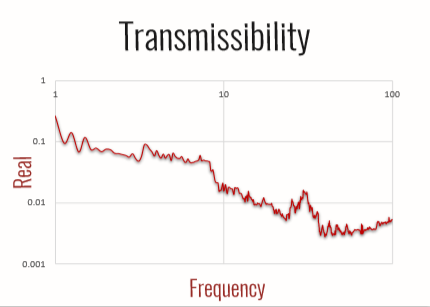

Vibration Isolation Performance -8db gain on 1Hz -20db gain on 2Hz -8db gain on 1Hz -20db gain on 2Hz -8db gain on 1Hz -20db gain on 2Hz -8db gain on 1Hz -20db gain on 2Hz -8db gain on 1Hz -20db gain on 2Hz -8db gain on 1Hz -20db gain on 2Hz -8db gain on 1Hz -20db gain on 2Hz -8db gain on 1Hz -20db gain on 2Hz
Settling time <0.1 sec <0.1 sec <0.1 sec <0.1 sec <0.1 sec <0.1 sec <0.1 sec <0.1 sec
Device All Types
Real-Time Diagnostic Tools Built-in-real-time 2 channels Oscilloscope, Real Time 2 channelSpectrum Analyzer
Real-Time performance adjustment Adaptive Control in ALL 6 degrees of freedom in real-time/ Remote Access
Input Voltage AC 80-260V/50-60Hz
Architecture MVIS - Multi-layer Vibration Isolation Stucture
