ArisMD Modular Active Vibration Isolation System

ArisMD Modular Active Vibration Isolation System

A lightweight and compact Table Top active vibration isolation systems that counteracts unwanted vibrations for sensitive equipment. The streamlined design allows it to seamlessly become part of the workstation environment, and its straightforward composition requires no follow-up tuning.

Key Features

▸6 degrees of freedom
▸Active gain starting from 0.5Hz
▸Variable Damping (patent pending)
▸Build In Artificial Intelligence Feature
▸Adjustable by software active bandwidth
▸Remote control
▸Built in real time diagnostic tools
   ▸Spectrum analyzer
   ▸Oscilloscope
▸Shaker Mode
Device ARIS MD 300 ARIS MD 500 ARIS MD 1000 ARIS MD Pro 300 ARIS MD Pro 500
Dimensions (WxDxH) mm 270x230x75 270x230x75 370x230x75 230x230x75 230x230x75
Load Capacity (kg) 100-300 per Isolator (Module) Number of Modules unlimited 200-500 per Isolator (Module) Number of Modules unlimited 500-1000 per Isolator (Module) Number of Modules unlimited 100-300 per Isolator (Module) Number of Modules unlimited 200-500 per Isolator (Module) Number of Modules unlimited
Actuator Force ↕ 80N, ↔ 40N ↕ 80N, ↔ 40N ↕ 80N, ↔ 40N
Active Isolation Range 0.5-100Hz 0.5-100Hz 0.5-100Hz 0.5-100Hz 0.5-100Hz
Degrees of Freedom All6 degree for System All6 degree for System All6 degree for System All6 degree for System All6 degree for System

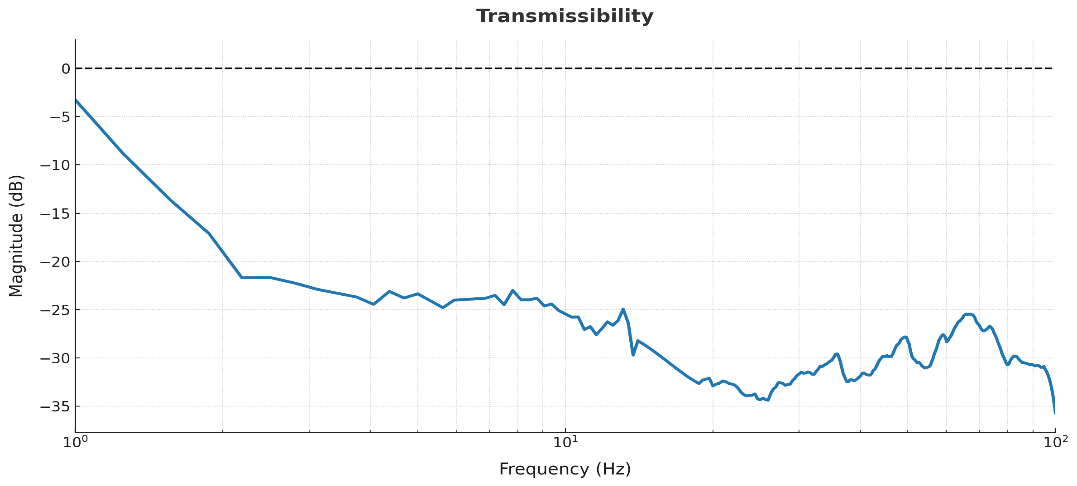

Vibration Isolation Performance -8db gain on 1Hz -20db gain on 2Hz -8db gain on 1Hz -20db gain on 2Hz -8db gain on 1Hz -20db gain on 2Hz -8db gain on 1Hz -20db gain on 2Hz -8db gain on 1Hz -20db gain on 2Hz
Settling time <0.1 sec <0.1 sec <0.1 sec <0.1 sec <0.1 sec
Device All Types
Real-Time Diagnostic Tools Built-in-real-time 2 channels Oscilloscope, Real Time 2 channelSpectrum Analyzer
